Cup and Handle 4.0

Indikator Metatrader (MT4/MT5)

  • Ikhtisar

    The Cup and Handle pattern is a technical price formation that resembles a cup and handle, where the cup is in the shape of a "U" and the handle has a slight downward drift. The right-hand side of the pattern -the handle- is smaller than the left-hand side -cup-, and retraces no more than 50% from the top. It can be both a continuation and a reversal pattern.

    • Clear trading signals
    • Customizable colors and sizes
    • Implements performance statistics
    • Customizable sizes and pattern characteristics
    • It displays suitable stop-loss and take-profit levels
    • It is non-repainting and non-backpainting
    • It implements email/sound/visual alerts
  • Parameter Input

    Saat Loading EA ke dalam chart apa pun, Anda akan disajikan dengan satu set opsi sebagai parameter input. Jangan putus asa jika Anda berpikir mereka terlalu banyak, karena parameter dikelompokkan ke dalam blok penjelasan diri.

    Amplitude
    The amplitude represents the minimum amount of bars between alternative price points. To find big patterns, increase the amplitude parameter. To find smaller patterns, decrease the amplitude parameter.
    Cup Flatness Ratio
    This parameter describes how "flat" must the top of the cup be relative to the cup size. A higher value will find stricter patterns, yet less frequent. A lower value will find more patterns.
    Min Handle Retracement
    The minimum percent retracement needed in the handle of the pattern.
    Max. Retracement
    The minimum percent retracement possible in the handle of the pattern.
    Max History Bars
    Amount of past bars to evaluate when the indicator loads in the chart.
    Display Stats
    Show or hide the statistics dashboard and performance data.
    Display SL/TP Levels
    Show or hide the stop-loss and take-profit levels.
    Drawing Options
    Colors and sizes for bullish or bearish lines and labels, as well as font sizes.
    Breakouts
    Colors and sizes for breakout arrows.
    Alerts
    Enable or disable alerts at will.
  • ? FAQ
    Does the indicator repaint?
    No, the indicator does not repaint or backpaint at all.
    Does the indicator back paint?
    No, the indicator does not back paint.
    Can patterns be displayed in the chart before the breakout happens?
    No, it can't. The pattern and the breakout arrow are displayed exactly as the same time, to prevent the indicator from repainting.
    Does the indicator implement alerts?
    Yes, it does. It implements alerts of all inds.
  • </> Developers

    Untuk membangun EA Anda, Anda dapat membaca data dari indikator menggunakan fungsi iCustom() seperti yang dicontohkan di bawah ini. Indikator ini memiliki satu buffer tambahan yang hanya bertujuan untuk menyimpan signal trading dengan konstan: ini adalah satu-satunya buffer yang perlu Anda baca. Copy and paste kode di bawah ini ke EA Anda, dan ganti nama indikator iCustom() dengan milik Anda sendiri.

    //---- Read value from data buffer
    int start()
    {
    // Read value from data buffer
    double value  = iCustom(Symbol(), Period(), "PZ_CupAndHandle_LICENSENUM", 1, 1);
    // Do something
    if(value == OP_BUY)      { /* Your code for bullish signal */ }
    if(value == OP_SELL)     { /* Your code for bearish signal  */ }
    if(value == EMPTY_VALUE) { /* Nothing to do */}
    // Exit
    return(0);
    }
  • Komentar

    Mohon komentar dengan rapi dan hormat. Hindari spam, komentar yang kasar, promosi diri dan posting informasi pribadi atau pembayaran. Bagian komentar hanya untuk diskusi dan pertanyaan. Harap dicatat bahwa kami tidak akan pernah meminta pembayaran di bagian komentar.

Screenshots

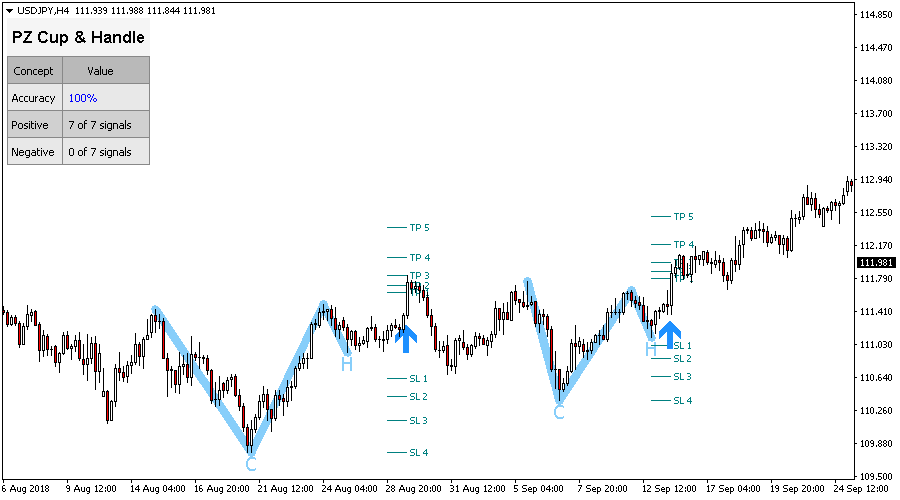

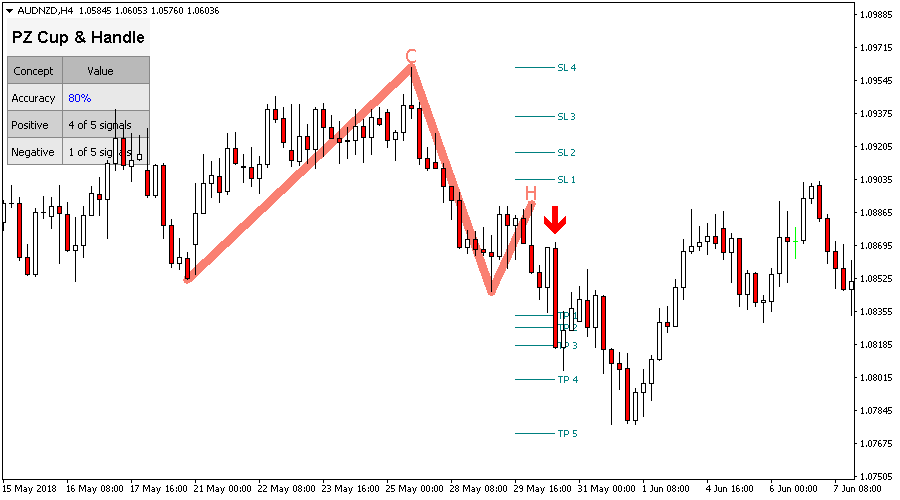

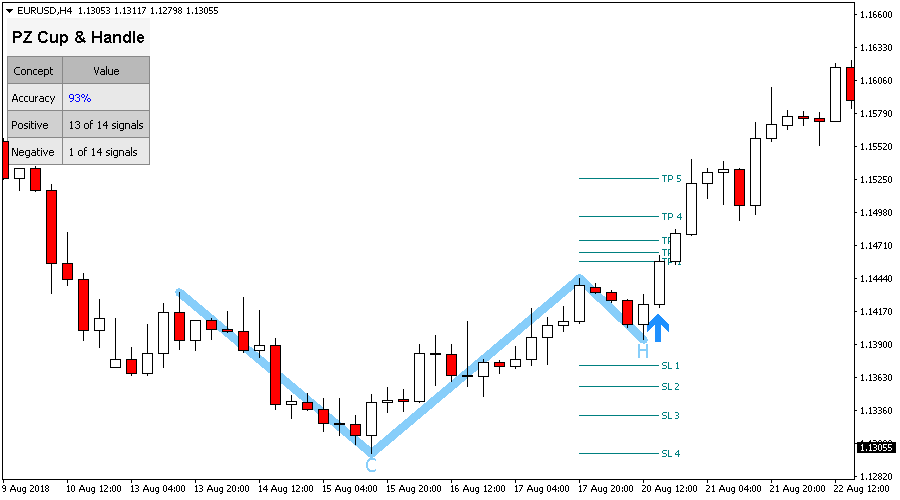

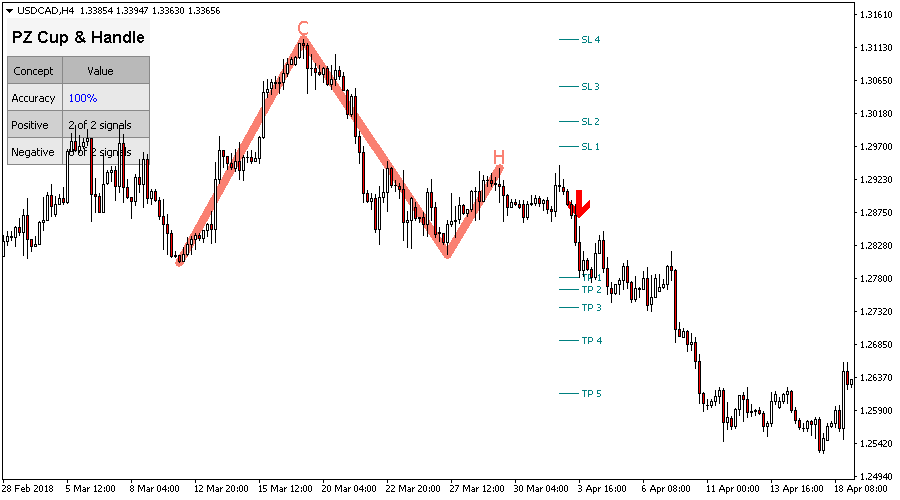

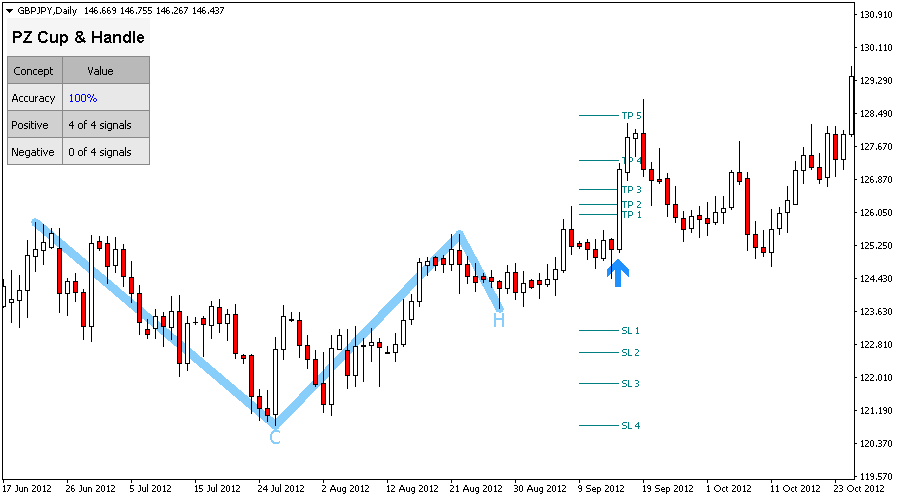

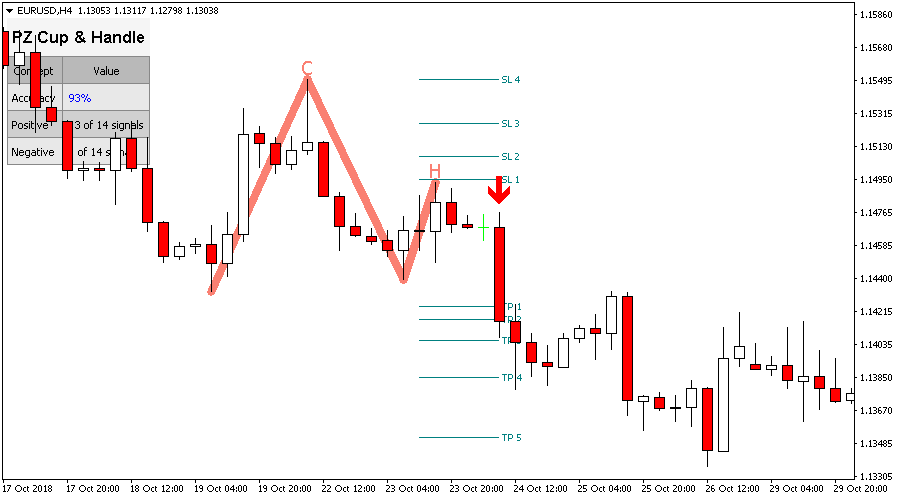

Cup and Handle Indicator for Metatrader
Cup and Handle Indicator for Metatrader
Cup and Handle Indicator for Metatrader
Cup and Handle Indicator for Metatrader
Cup and Handle Indicator for Metatrader
Cup and Handle Indicator for Metatrader
Cup and Handle Indicator for Metatrader
