en Penta-O 8.0
Metatrader Indicator (MT4/MT5)
-
ℹ Overview
Predict and capture big market movements
The Penta-O is a sophisticated harmonic trading pattern used by technical analysts to forecast potential and long-lasting market reversals.
- Customizable pattern sizes
- Customizable colors and sizes
- Customizable breakout periods
- Customizable pattern ratios
- It implements visual/sound/push/mail alerts
Penta-O patterns can expand and repaint quite a bit. To make things easier this indicator implements a twist: it waits for a donchian breakout in the right direction before signaling the trade. The end result is an otherwise repainting indicator with a very reliable trading signal. The donchian breakout period is entered as an input.
- Bullish patterns are blue
- Bearish patterns are red
Kindly note that price patterns such as this can expand and the indicator must repaint to follow the expansion of the pattern. If the pattern repaints beyond the ratios entered in the parameters, the pattern will dissapear as it won't be valid any more. To trade these patterns, please resort to the donchian breakout signal.
Important: This indicator has been renamed to comply with a trademark complaint from Mr. Scott M. Carney, who owns the following trademarks in the USA: Five-O Pattern.
Technical Information
- The indicator is evaluated every bar, not every tick.
- The last point of the pattern repaints as the pattern expands.
- You can have several indicators on the chart with different amplitudes.
- An alert is displayed when the pattern forms and also when the breakout takes place.
- A small percentage of trading signals can repaint. You can increase the breakout period.
Penta-O patterns do not happen very often: to find more, load the indicator many times in the chart with different amplitudes.
- ≡

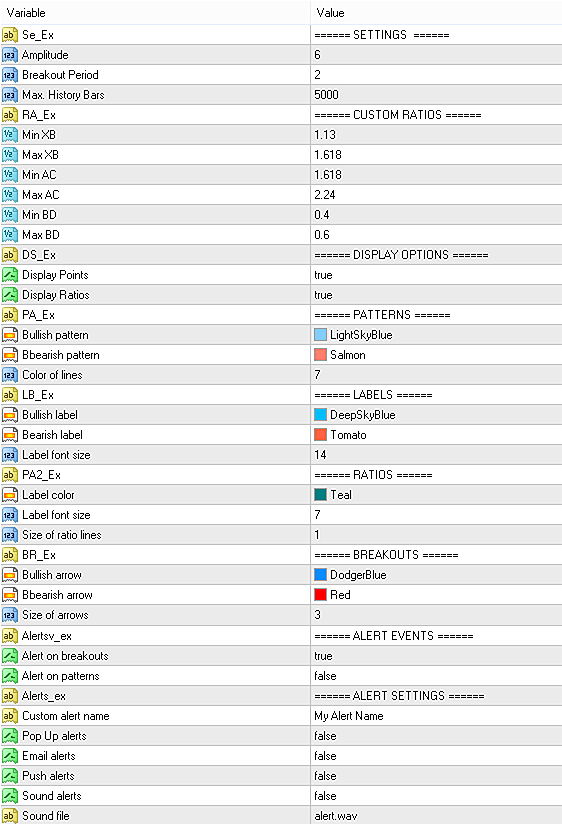

Input parameters
When loading the expert to any chart, you will be presented with a set of options as input parameters. Don't despair if you think they are too many, because parameters are grouped into self-explanatory blocks.
- Amplitude
- Size of the patterns to be found
- Breakout Period
- Donchian breakout period to time signals
- Max History Bars
- Amount of bars to look back when the indicator loads
- Min XB
- Minimum XB ratio for a valid pattern
- Max XB
- Maximum XB ratio for a valid pattern
- Min AC
- Minimum AC ratio for a valid pattern
- Max AC
- Maximum AC ratio for a valid pattern
- Min BD
- Minimum BD ratio for a valid pattern
- Max BD
- Maximum BD ratio for a valid pattern
- Labels
- Select colors and sizes of the O,A,B and 1,2,3 labels
- Ratios
- Select colors and font-size for ratios
- Alert on breakouts
- Enable to receive alerts when a pattern is found
- Alert on patterns
- Enable to receive alerts when a breakout happens and arrows show up
- Alert settings
- Enable or disable visual, push, email and sound alerts
- ?
FAQ
- Does the indicator repaint?
- Yes, the D point has to repaint as the pattern expands.
- Does the indicator implement alerts?
- Yes, it does.

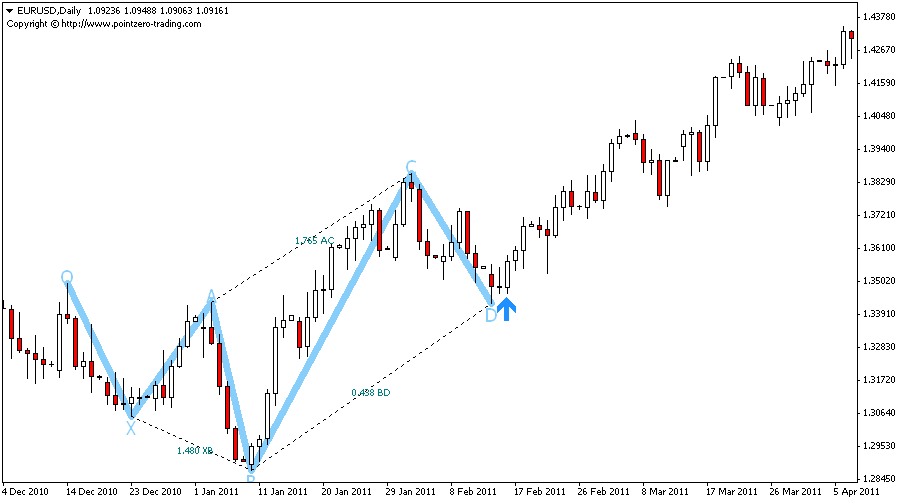

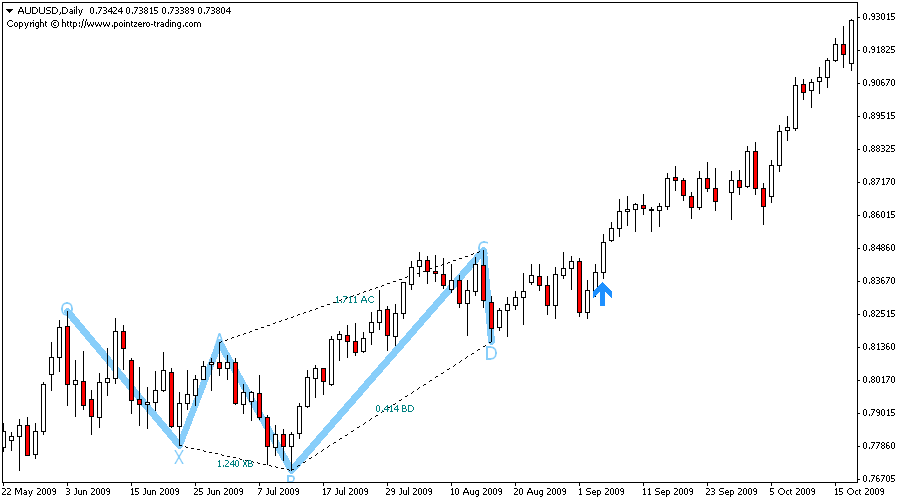

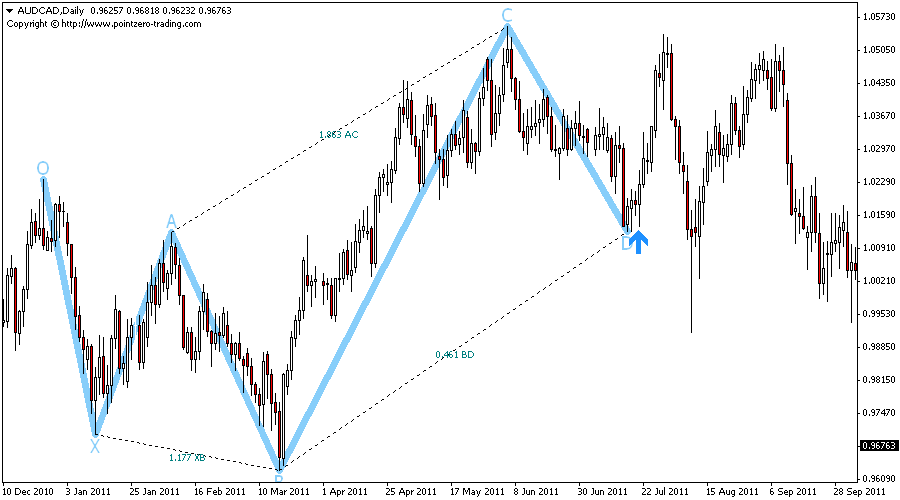

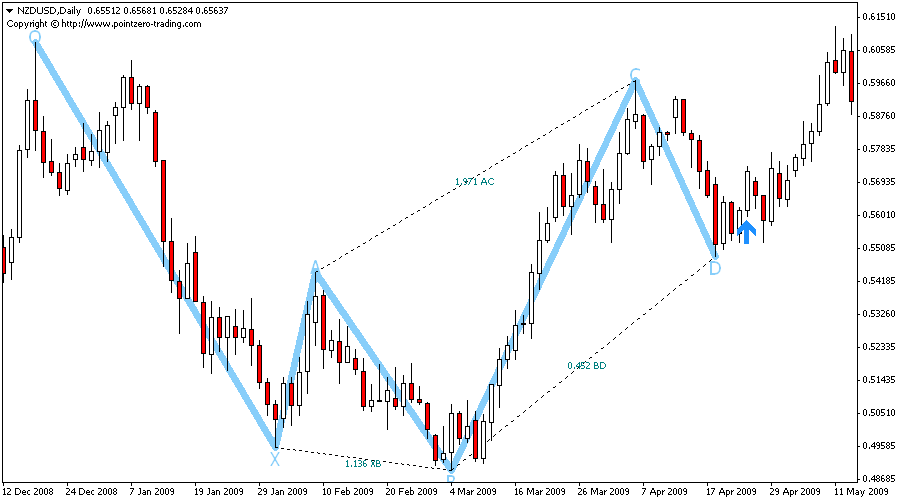

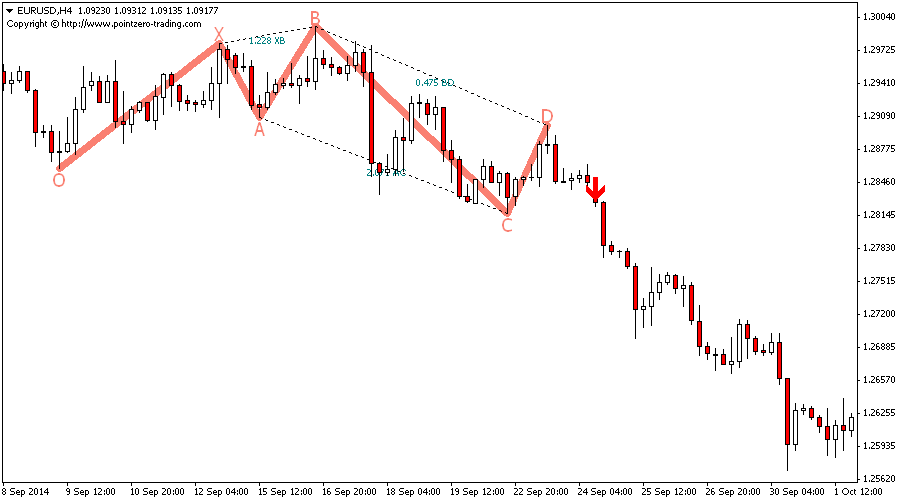

Screenshots
